Product Description
A high-reliability expanded beam fiber optic connector designed to meet GJB599B/MIL-DTL-38999 Series III interface requirements, with performance compliant with ARINC 801 standards, delivering exceptional optical performance in demanding aerospace and defense environments.
The non-contact expanded beam optical structure ensures stable transmission under dust, vibration, and repeated mating/unmating conditions. The ceramic O-ring sleeve provides superior port protection, significantly extending service life.
Key Features
- GJB599B (MIL-DTL-38999 III) interface compatible, optical performance meets ARINC 801 standard
- Designed for multi-channel optical communication in aviation, electronics, and marine systems

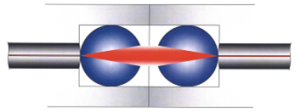

- Beam-expanding lens design for true non-contact optical docking
- Closed O-ring ceramic sleeves greatly improve insertion/removal endurance
- Excellent dust resistance, suitable for harsh environments
- Easy termination and extraction using standard M81969/14-03 tools
Technical Magadzirirwo
Mechanical Performance
| Parameter | Specification |
| Mechanical Hupenyu | 2000 mating cycles (plug/unplug) |
| Impact Resistance | Peak acceleration: 2940 m/s²Duration: 3 msSpeed change: 5.61 m/s |
| Vibration | Frequency: 10 Hz – 2000 HzPower spectral density: 0.4 G²/HzAcceleration (RMS): 23.1 G |
| Tensile Resistance | ≥ 68 N (Φ2 mm waya) |
Environmental Performance
| Parameter | Specification |
| uchishandisa Temperature | −55 °C to +125 °C (depending on cable) |
| Salt Mist Resistance | K: 500 hF: 48 hW: 500 hMW: 192 h (acidic atmosphere) |
| Airtightness (airtight adapter socket) | Gas leakage rate ≤ 1 × 10⁻⁹ Pa`m³/sPressure differential: 1 atm |
Optical Performance
| Parameter | Specification |
| Kuisa Loss | ≤ 0.6 dB @ 850 nm≤ 1.0 dB @ 1310 nm |
| Return Loss | ≥ 20 dB @ 850 nm≥ 45 dB @ 1310 nm |
Zvinobatanidza Mabheya Akawedzerwa Nemhando Yepamusoro & Zvimwe Zvakavimbika Pane Makambani Anotungamira Pasi Rose
Isu tinopa ma "expanded beam fiber optic connectors" akagadzirirwa zvaunoda chaizvo, ukuwo tichipa dzimwe nzira dzinoshanda uye dzakavimbika kune ma "brand" makuru epasi rose. Kubva pakugadzira kusvika pakubatanidza tambo, timu yedu yeinjiniya inovimbisa kubatana kwakanaka uye kushanda kwakavimbika munzvimbo dzakaoma.
kunyoresa
Aerospace & Avionics
Inoshandiswa mundege umo kuramba kutenderera uye kutumirwa kwemaziso kwakavimbika kwakakosha.
Mauto & Dziviriro
Inopa kubatana kwakasimba kwefiber kwekutaurirana kwehunyanzvi munzvimbo dzine guruva uye dzinovhundutsa zvakanyanya.
Mugungwa neMugungwa
Yakanakira masisitimu engarava negungwa anowanikwa muhunyoro, munyu, uye mamiriro ekunze akaomarara.
Nzvimbo dzeMaindasitiri & Dzakaoma
Inovimbisa kutapurirana kwemashoko kwakavimbika mumafekitori, migodhi, uye mashandisirwo emafuta negasi.
Kutepfenyura & Kutaurirana Kwekunze
Yakakodzera kutepfenyura panze uye network dzemumunda dzinoda kubatana kwefiber nekukurumidza uye kwakavimbika.
FAQ
1. Chii chinonzi expanded beam fiber optic connector?
Mabhandi emwenje akawedzerwa anoshandisa magirazi echiedza kuti awedzere uye aenderane nebhandi rechiedza, zvichibvumira kutapurirana kwechiedza kusingabatanidzwe. Dhizaini iyi inovandudza kusimba kweguruva nekusvibiswa.
2. Ndezvipi zvinodiwa zvinotsigirwa nema connectors ako?
Makonekita edu anogona kugadzirwa kuti aenderane nezvinodiwa zveMIL-DTL-38999, MIL-DTL-83526, uye ARINC 801.
3. Unotsigira kugadzirisa zvinhu here?
Ehe. Tinogona kupa mhinduro dzakagadzirwa dzinosanganisira kuwanda kwemafiber, connector interface, uye cable assemblies zvichienderana nezvinodiwa neprojekiti.
4. Zvigadzirwa zvako zvinogona kutsiva mabrandi anozivikanwa pasi rose here?
Ehe. Mabhanan'i edu akawedzerwa akagadzirwa kuti aite basa rakafanana neremakambani makuru epasi rose, ukuwo achipa magadzirirwo anochinjika uye mitengo inokwikwidzana.
5. Ndeapi maindasitiri anoshandisa ma expanded beam connectors?
Dzinoshandiswa zvakanyanya mundege, dziviriro, michina yemaindasitiri, masisitimu ekutaurirana ekunze, uye mashandisirwo akaomarara enzvimbo.
6. Ndezvipi zvakanakira zvekubatanidza danda rakawedzerwa?
Kuramba kwakasimba kuguruva uye kusvibiswa; Hupenyu hurefu hwekusangana; Zvinodiwa zvekuchenesa zvakaderera; Kushanda kwakavimbika munzvimbo dzakaoma.
Nei Tichifanira Kushandira Pamwe Nesu?
Mugadziri weChinongedzo cheMatanda Akawedzerwa neNyanzvi
Tinopa zvinobatanidza fiber optic zvinogadzirwa nebeam expanded beam zvakagadzirirwa kushandiswa zvakanyanya senge zvemuchadenga, zvekudzivirira, uye zvemaindasitiri.
Kuenderana Kwemitemo Yepasi Pose
Makonekita edu akagadzirwa kuti aenderane nezvinodiwa neindasitiri zvakaita seMIL-DTL-38999, MIL-DTL-83526, uye ARINC 801, zvichiita kuti zvive nyore kubatanidza nemasisitimu aripo.
Custom Design Kugona
Tinotsigira kugadziriswa kunochinjika kunosanganisira saizi yeganda, huwandu hwefiber, ma cable assemblies, uye hybrid optical/electrical solutions kuti zvienderane nezvinodiwa zvepurojekiti.
Imwe Nzira Yakavimbika Yekutsiva Mabhurogu Epasi Rose
Mhinduro dzedu dzinopa kuvimbika kwakanyanya uye mashandiro akafanana nemakambani makuru ekubatanidza epasi rose, zvichipa vatengi imwe nzira isingadhuri uye yakavimbika.
Hunhu & Kuvimbika
Zvigadzirwa zvese zvinoedzwa zvakasimba kuti zvive nechokwadi chekuti mashandiro emaziso akasimba uye hupenyu hurefu hwebasa munzvimbo dzakaoma.
Professional Service
Tinopa rutsigiro rwakakwana rwehunyanzvi kubva pakusarudza zvibatanidza nekugadzirisa tambo kusvika pakugadzira tambo, kuisa, uye rutsigiro rwenguva refu rweinjiniya.
Request a quote today and find the right expanded beam connector for your project！
