LK-NYSD Mini UWB DML Laser Module
- Miniature Design
- Direct Modulation
- High-Dynamic-Range
- 18 GHz Bandwidth
- Yakaderera chikumbaridzo ikozvino
- Yakakwira goho simba
- 7pin butterfly package ine SMA yekubatanidza
- Kushanda kesi tembiricha: -40 kusvika 70 ℃
- Kuvimbika Kwakawedzerwa
- Low RIN
Product Description
LK-NYSD laser ndeye compact, yakananga modulated DFB laser yakagadzirirwa kushanda kwepamusoro mumutsara fiber optic yekutaurirana masisitimu. Iyo inokwanisa kuburitsa wavelengths pa1310nm, 1550nm, uye CWCM. Aya ma lasers anoshanda seanotsiva epamusoro kune coaxial tambo masisitimu ekufambisa masaini pa12 GHz kana 18 GHz frequency.
Iyo inosimudzira kuvimbika kweiyo microwave yekutaurirana network nekuchengetedza kutendeseka kweRF chiratidzo panguva yekufambisa. Nekuda kwehunhu uhwu, izvi zvigadzirwa zvelaser zvinosimudzira mhando yechiratidzo mukati mehuwandu hwakawanda hwemashandisirwo, senge antenna remoting, telemetry, nguva uye referensi chiratidzo chekugovera, uye kuyerwa uye kunonoka mitsara.
LK-NYSD laser inoratidzira yakasanganiswa optical isolator, thermoelectric cooler (TEC), thermistor, laser diode chip, uye yekutarisa photodiode, iyo yese yakavharirwa mukati me7-pini butterfly package kuti ive nechokwadi chekudzivirira hermetic.
Technical Magadzirirwo
Mhedzisiro Yakakura Maitiro
| Parameter | chiratidzo | Min. | Max. | chikwata |
| Laser diode mberi ikozvino | If | - | 120 | mA |
| Laser diode reverse voltage | V | - | 1 | V |
| Simba repamberi | Pf | - | 20 | dBm |
| PD reverse voltage | V | - | 15 | V |
| Forward current (PD) | Im | - | 2 | mA |
| Operation tembiricha | To | -40 | + 70 | ° C |
| Storage tembiricha | Ts | -55 | + 85 | ° C |
| Kuchengetedza hunyoro hwehukama | Sr | - | 85 | % |
Magetsi / Maonero Hunhu (TC = 22±3℃)
| Parameter | chiratidzo | Mamiriro Emuedzo | Min | mhando | Max | Units | chitsamba |
| Wavelength | λ | IF = Iop, T = Pamusoro | 1310nm, 1550nm, CWDM - |
nm | akasarudzwa | ||
| maitikiro | - | X bhendi | 0.1 | - | 12 | GHz | - |
| Ku band | 1 | - | 18 | ||||
| Optical Kubuda Simba | P | IF=Ip | - | 10 | - | mW | 1 |
| Thershold current | Ith | - | - | - | 10 | mA | - |
| Mashandiro azvino | Iop | - | - | 55 | 100 | mA | - |
| Kushanda voltage | Vop | - | - | 1.5 | 2.5 | V | - |
| Slope kunyatsoshanda | SE | - | 0.2 | - | - | W / A. | - |
| Side-mode kudzvinyirira ratio | SMSR | IF=Ip | 30 | - | - | dB | - |
| Ruzha Rwokuwedzera Ruzha | RIN | - | - | -150 | -130 | dB / Hz | - |
| Bandwidth (-3dB, I=60mA) | S21 | X bhendi | - | 12 | - | GHz | - |
| Ku band | - | 18 | - | ||||
| Kudzorera kurasikirwa (VSWR) | VSWR | X bhendi | - | - | 2 | dB | - |
| Ku band | - | - | 2.2 | ||||
| Input 1 dB Compression | - | - | 15 | - | - | dBm | - |
| Thermistor Resistance | Rth | @ 25 ° C | - | 10 | - | Kohm | - |
| TEC nhasi | It | - | - | - | 1.2 | A | 2 |
| TEC voltage | Vt | - | - | - | 2.5 | V | 2 |
| Kugona (PD) | Ct | - | - | - | 20 | pF | - |
| Monitoring ikozvino | Im | - | 0.10 | - | 2.0 | mA | - |
| Rima ikozvino (PD) | Id | - | - | - | 50 | nA | - |
Notes:Ese machipisi emalaser anobva kumawafer akasimbiswa achishandisa mumiriri wemidziyo yakawanda inofanirwa kuwana goho rinogamuchirwa rekutsva-mukati.
1. Laser tembiricha set 25℃, bias ikozvino pa 55mA
2. Kushanda nyaya tembiricha -40 ~ 70 ℃
● Typical Curve

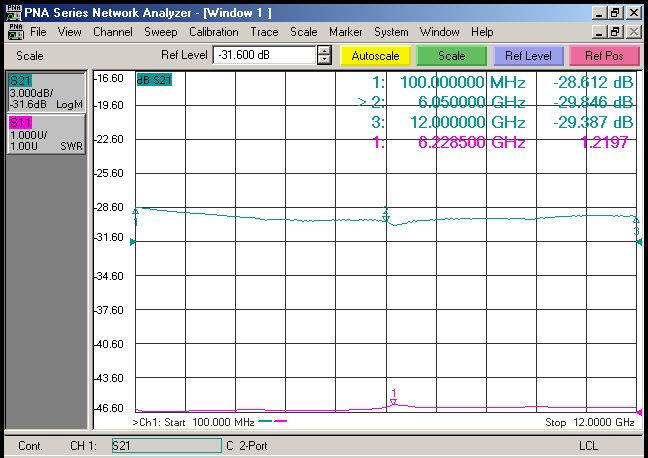

Mufananidzo 1. LK-NYSD Series laser X band S-curve
Mufananidzo 2. LK-NYSD Series laser Ku band S-curve
● Chimiro cheSpectrogram

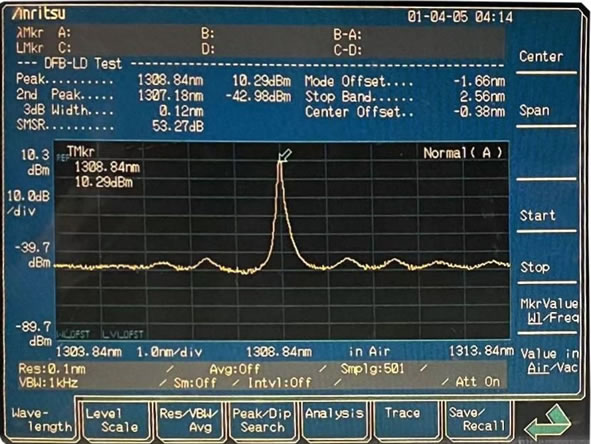

Mufananidzo 3. LK-NYSD Series laser Spectrogram - bhendi 1nm
Mufananidzo 4. LK-NYSD Series laser Spectrogram - bhendi 10nm
● Dimension
Mufananidzo 5. Dimension yeLK-NYSD Series
● Tsanangudzo yePini
| chinhu | tsananguro | ||||||||
| chipeneti | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| tsananguro | PD- | PD+ | LD- | Thermistor | Thermistor | TEC- | TEC+ | RF kubuda | Optical input输入 |
| mhando | -- | -- | -- | -- | -- | -- | -- | SMA-K | FC/APC |
● ZVINHU ZVINOODA
Pepa 1:
| mhando | 13 | 15 | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Wavelength (nm) | 1310 | 1550 | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
| CWDM | |||||||||
Pepa 2:
| mhando | maitikiro |
| X | 0.1 ～ 12 GHz |
| Ku | 1 ～ 18 GHz |
Pepa 3:
| mhando | Mhando ye optical connector | taura pfungwa |
| N | Customized | |
| A | FC / APC | Standard 9/125μm single mode faibha |
| P | FC / PC | Standard 9/125μm single mode faibha |
Applications
High-Speed Data Kukurukurirana
Antenna Remoting
Cellular uye PCS Networks
Analog RF inobatanidza kutapurirana
Kukurukurirana Kwemauto
Kutevera, Telemetry, uye Kudzora
Telemetry Systems
Mauto uye Dziviriro Systems
