LK-MAMPD-4 Multichannel High Speed ​​​​Amplified Microwave Photodetector

  • High Speed, Wide Bandwidth
  • Yakabatanidzwa Bias-T
  • O/E Hybrid Yakabatanidzwa
  • Kuwana Kwakakwirira, Ruzha Rwakaderera, Broadband
  • Hermetically Yakavharwa, SMA Connector
  • Yakaderera Rima Yazvino, yakakwira chiratidzo-kune-ruzha chiyero.
  • Diki Form Factor.
muvhunzo

+ 86 29 88244373

Product Description

LK-MAMPD-4 is state-of-the-art optoelectronic hybrid system, inobatanidza Broadband Indium Gallium Arsenide (InGaAs) photodiode ine yakaderera-ruzha amplifier. Iyi photodiode inoratidzwa ne spectral response wavelength kubva 1000 kusvika 1650 nanometers. Iyo yakaderera-ruzha amplifier mukati meiyo system inopa Radio Frequency (RF) kuwana gumi neshanu decibel, kuve nechokwadi chechiratidzo chekuvimbika uye kukwidziridzwa.

LK-MAMPD-4 inokwanisa kupa bandwidths e12 gigahertz uye 18 gigahertz, inotarisira kune zvakasiyana-siyana zvekukurumidzira kutaurirana nekuona zvinodiwa. Iyo module yakagadzirirwa kushanda pane + 5-volt yekugovera voltage, inova yakajairwa mune akawanda emagetsi masisitimu. Inoenderana neyakajairwa single-mode 9/125-micrometer optical fibers, kuve nechokwadi chekubatanidza isina musono neiyo iripo fiber optic network. Iyo RF inobuda chiteshi inoratidzira SMP-inoenderana yekubatanidza, iyo impedance-inofananidzwa ne50 ohms yekunyatso fambisa chiratidzo uye kushoma chiratidzo kurasikirwa.

LK-MAMPD-4 inovakwa ne hermetic sealing process, iyo inopa kuchengetedzwa kwakasimba kubva kune zvakatipoteredza zvinhu, kuwedzera kusimba kwayo uye kuvimbika. Iyo ine compact fomu chinhu, inorema mukati isingasviki 62 magiramu, iyo inobatsira kune maapplication uko huremu hunotariswa. Iyo module inotenderwa kutevedzera iyo Restriction yeHazardous Substances (RoHS) Directive 2.0, ichisimbisa kuomerera kwayo kune dzakaomarara kwezvakatipoteredza uye chengetedzo zviyero.

Technical Magadzirirwo
Typical & Absolute Maximum Rating
Parameter Sym. mhando Rating chikwata
Kuchengetedza tembiricha renji TSTG -45 ～ +85 -55 ～ +100 ℃
Operating kesi tembiricha range TC 25 -40 ～ +85 ℃
Bias Voltage VR +5 +5 ～ +9 V
Optical Input Simba chipeneti 0 + 10 dBm
Kupisa-Kubuda KweOptical Power PB - + 13 dBm
Lead soldering tembiricha Tp 280 (10s) 330 (10s) ℃
Magetsi / Optical Hunhu (TC = 22 ± 3 ℃ )
Parameter Sym Mamiriro Emuedzo Parameter Maitiro chikwata
Wavelength Range λ - 1000 ～ 1650 nm
Frequency Range - - X - Band Ku - Band -
Diki Signal Bandwidth f-3dB TC = 22 ± 3℃ 0.3 ～ 12 2 ～ 18 GHz
Kuteerera Re VR =+5V, Pin =10mW λ = 1310 nm ≥ 0.8 ≥ 0.85 A / W.
λ = 1550 nm ≥ 0.85 ≥ 0.8
Amplitude Flatness A TC =-45～+85 ℃ ≤ ± 2 dB
Saturation Optical Power Ps VR =+ 5 V, λ = 1550 nm
AC Modulated		 10 dBm
RF Signal Gain (Yakajairika) G - 15 ± 1 dB
Saturation RF Output Power Ppanze - +3 dBm
Kubuditsa VSWR VSWR - ≤ 2 -
Kubuditsa Impedance RL - 50 Ω

● Macurves Anoda Kupindura

(Mufananidzo 1 X - Band Photodetector Frequency Response)

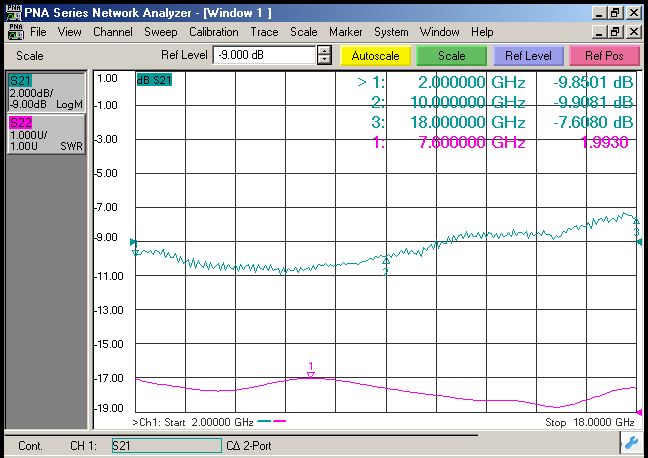

(Mufananidzo 2 Ku - Band Photodetector Frequency Response)

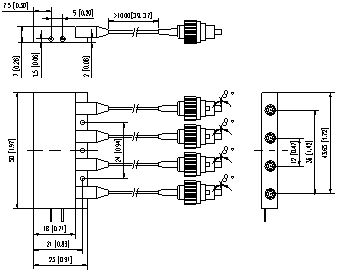

● Dimension nemapini ( Chikamu: mm[inch] )

RF Connector: SMP

● Kuodha Mashoko

Pepa 1:

kodhi Analog Bandwidth
X 0.2 ～ 12 GHz
Ku 2 ～ 18 GHz

Pepa 2:

kodhi Connector Type taura pfungwa
N Hapana Connector Imwe-modhi 9 / 125 μm fiber pigtail
A FC / APC
P FC / PC

● Kungwarira

  • Iyo fiber bending radius isingasviki 20 mm yekudzivirira fiber kukuvara.

  • Iva nechokwadi chekuti fiber coupling facet yakachena usati waibatanidza kune opto-circuit.

  • Iyo yakakodzera ESD dziviriro inodiwa mukuchengetedza, kutakura uye kushandisa.

Yese yedu yakajairwa photodetectors inogona kugadziridzwa kuita ma module!

Applications

  • Radar Information Processing

  • ZveMagetsi Hondo

  • Antenna Measurement

  • Fiber Optic Communications

  • Kuchengetedza uye Kuongorora
